Range of application
Mainly used in pulp and paper, sugar, petrochemical industry, oil refining, coal processing and other industries to
transport high and low temperature, neutral or corrosive, clean or containing solid particles of the medium.

The performance parameters
Flow:4-400m³/h

Work Pressure:2.5MPa

Head:4-125m
Working temperature:-45-300℃

Speed:2950r/min,1475r/min

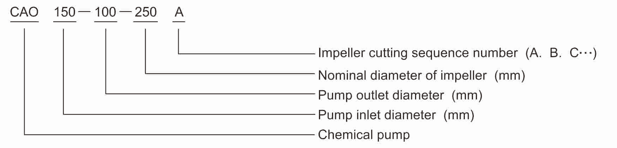

Model compilation and description

Material selection
Select materials:WCB,ZG15Cr13,CF8,CF8M
According to the different transport media, the position of the f low can be.

Implementation standards
DIN24256/ISO2858,API10 standard

Instructions for ordering
In order to make the product can better meet the requirements of the working condition, please be sure to provide: medium name, specific gravity, viscosity, containing particles: Working temperature, working environment, motor working system, motor protection level and other requirements.

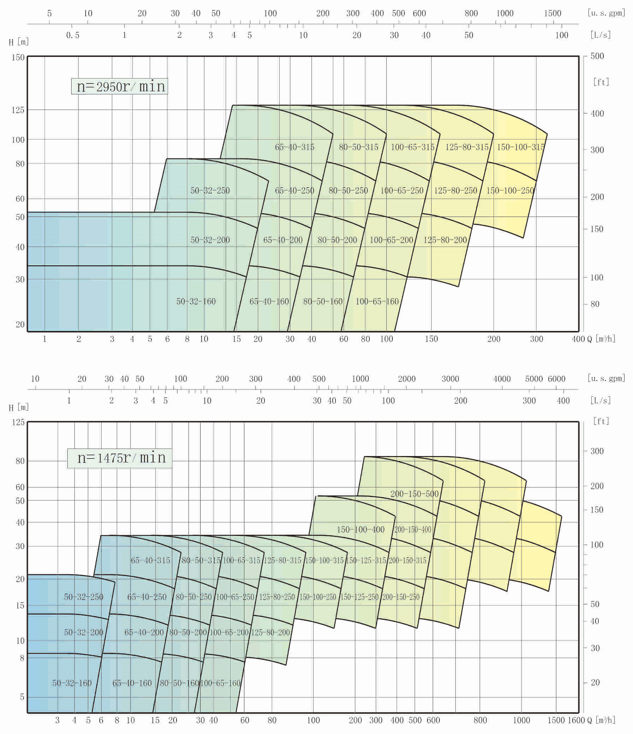

CAO performance peofile
