Application scope
Mainly used in petroleum, oil refining, chemical industry, chemical fiber, paper making, pharmaceutical, food, printing and dyeing, Marine and environmental engineering and other industries to transport me dium with high and low temperature, neutral or corrosive, clean or containing solid particles.

Performance parameters
Flow:4-1600m³/h

Work Pressure:2.5MPa

Head:4-125m
Speed: 2950r/min,1475r/min

Working temperature:-45-300℃

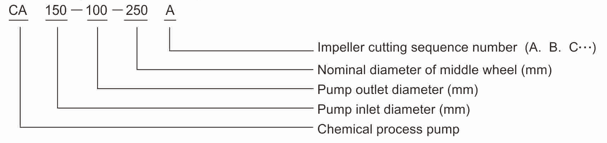

Model compilation and description

Material selection
According to different transport media, the following materials can be selected for the over-current position:WCB, ZG15Cr13,
CF8,CF8M, etc.

Implementation standards
DIN24256/ISO2858,API610 standard

Instructions for ordering
In order to make the product can better meet the requirements of working conditions, please be sure to provide: medium name, medium concentration, specific gravity, viscosity, PH value/containi ng particles: Working temperature, working environment, motor working system, motor protection level and other requirements.

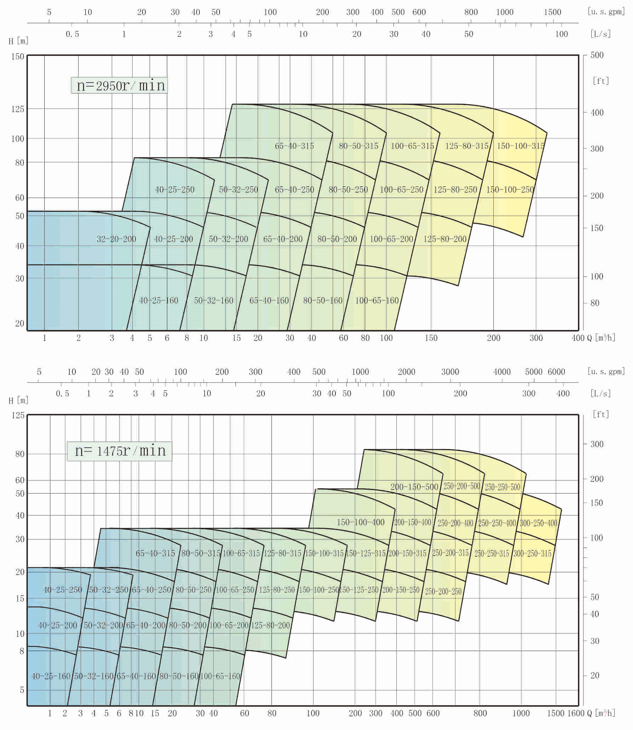

CA performance profile

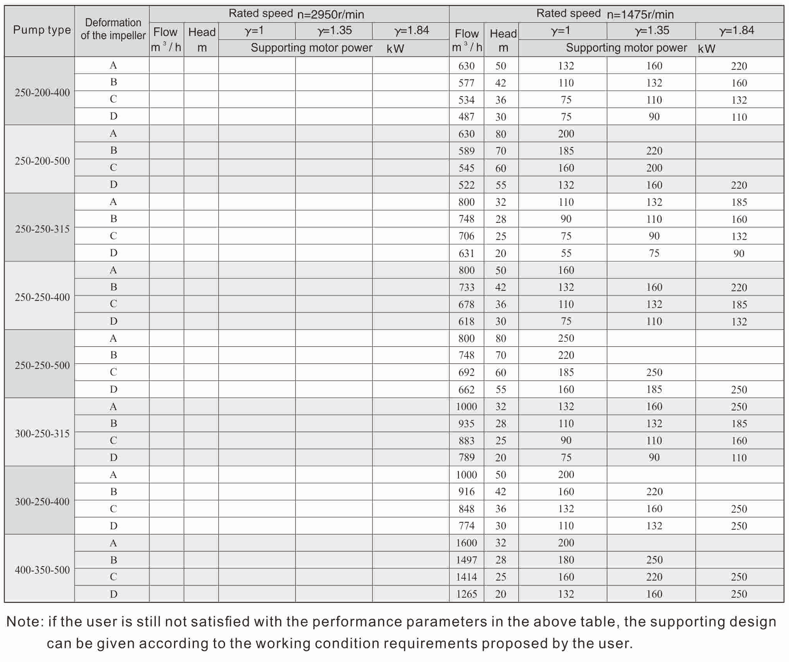

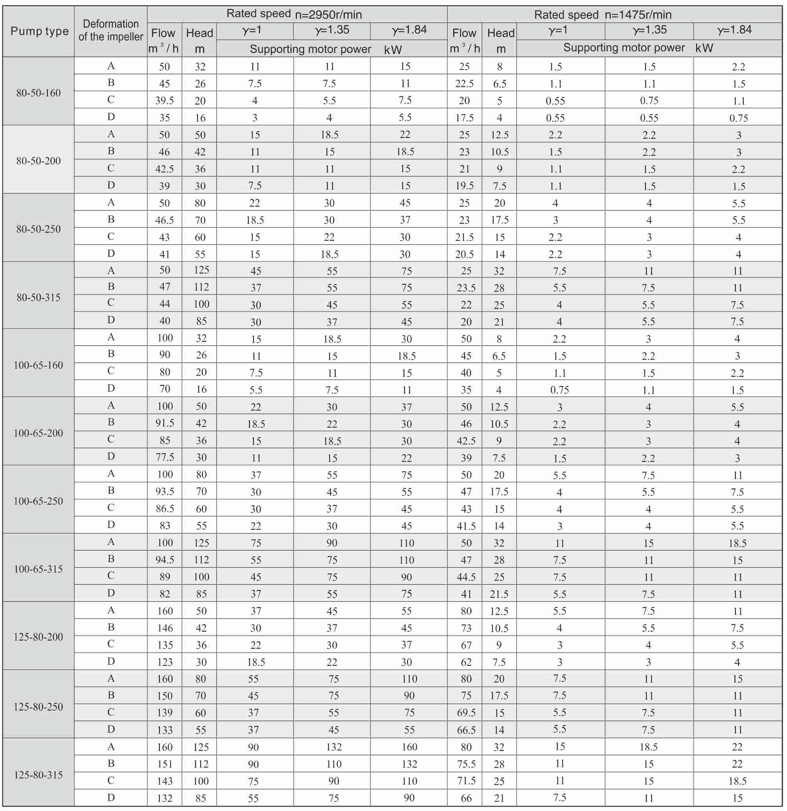

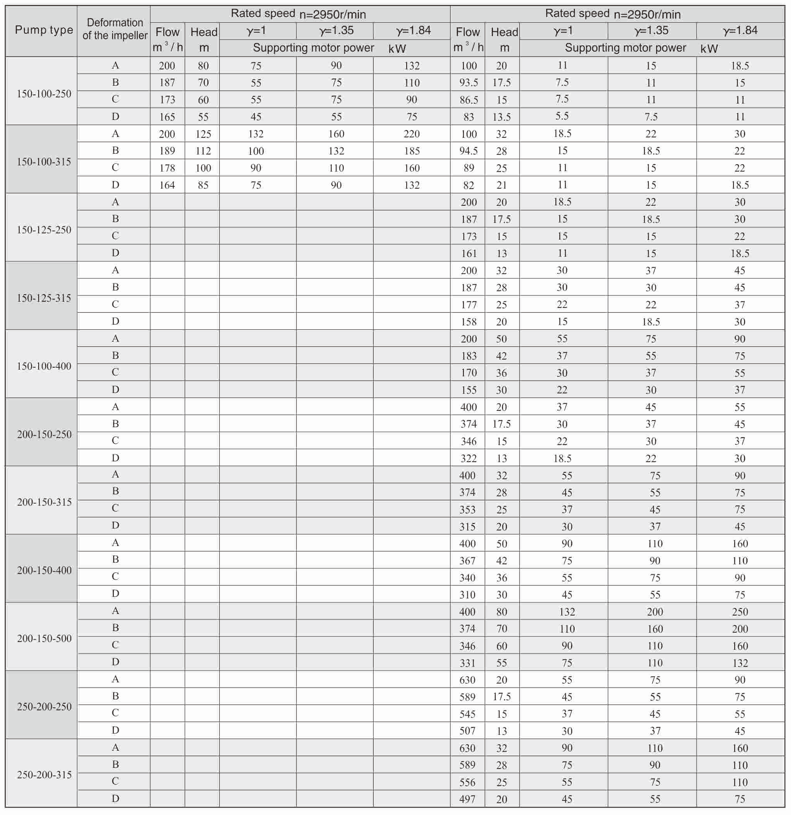

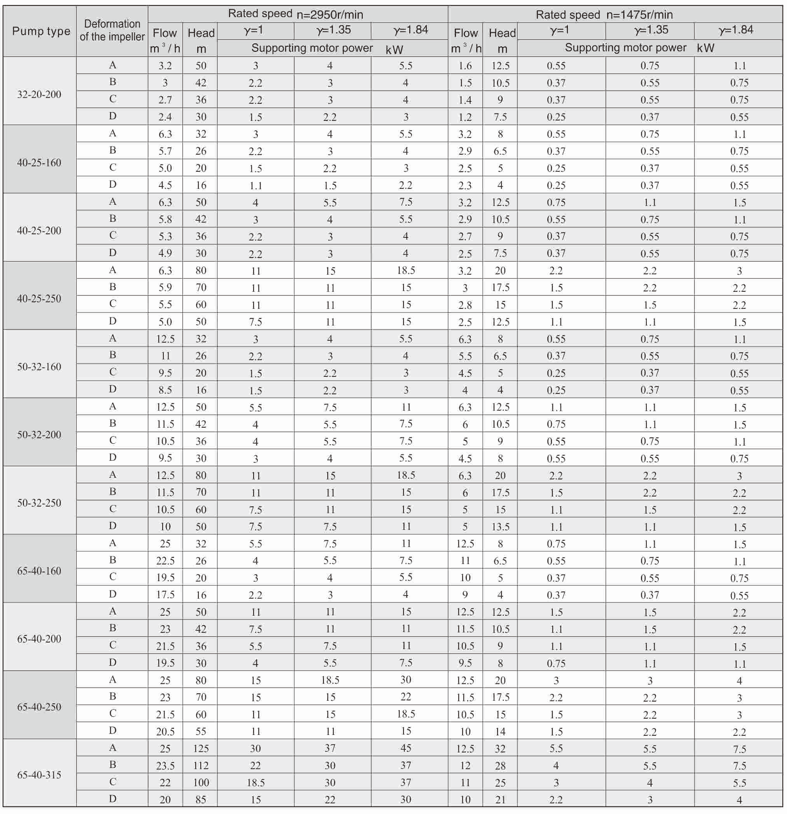

CA performance parameters
